随着人工智能的兴起，人们对包含矩阵运算在内的计算性能期望不断增长。传统处理器受到能耗和带宽的限制，逐渐无法满足庞大的数据处理需求。光学矩阵-向量乘法器有潜力显著降低信息传输能耗，提高设备运行速度，扩大信息传输容量，因此被视为高性能深度神经网络加速硬件的候选²。根据原理，目前被报道的片上乘法器可以被分为三大类³：波分复用型、马赫曾德干涉仪型和多平面光转换型。前者往往需要多个激光器以支持多波长，而后两者的矩阵加载需要借助算法。

时尧成团队首次提出并实现了基于模分复用的片上矩阵向量乘法器。该乘法器包括模式复用器、多模功率分束器、模式解复用器、调制器矩阵和合束器，其中模式（解）复用器为基于模式演化的反锥形耦合器（ADC）⁴、多模功率分束器采用了交叉波导交叉区域对角斜嵌入亚波长光栅（SWG）反射镜结构⁵。论文在绝缘体上硅平台研制了一个4×4规模的演示型乘法器，结合片外光源和探测器实验演示了2-bit调制精度下该器件的动态响应。原理和实验表明：该器件无需复杂光源、支持一对一的矩阵加载，且未来也可以结合波长实现更大的规模。

图1 | a, 提出的4×4模分复用乘法器示意图；b, 封装芯片图；c, 显微图。

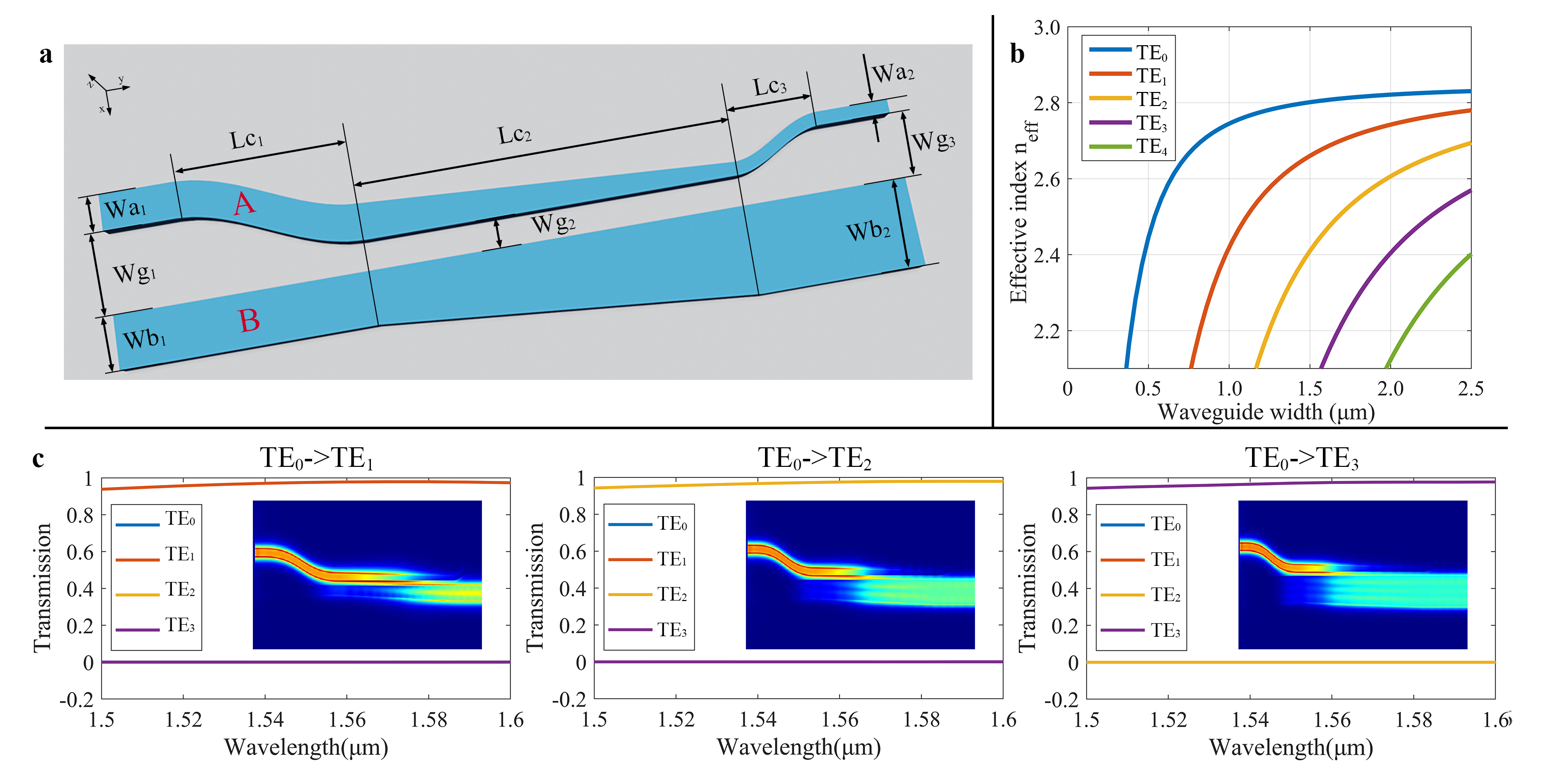

图2 | a, ADC结构示意图；b, 不同模式的有效折射率；c, ADC模式转换效率和光场分布图。

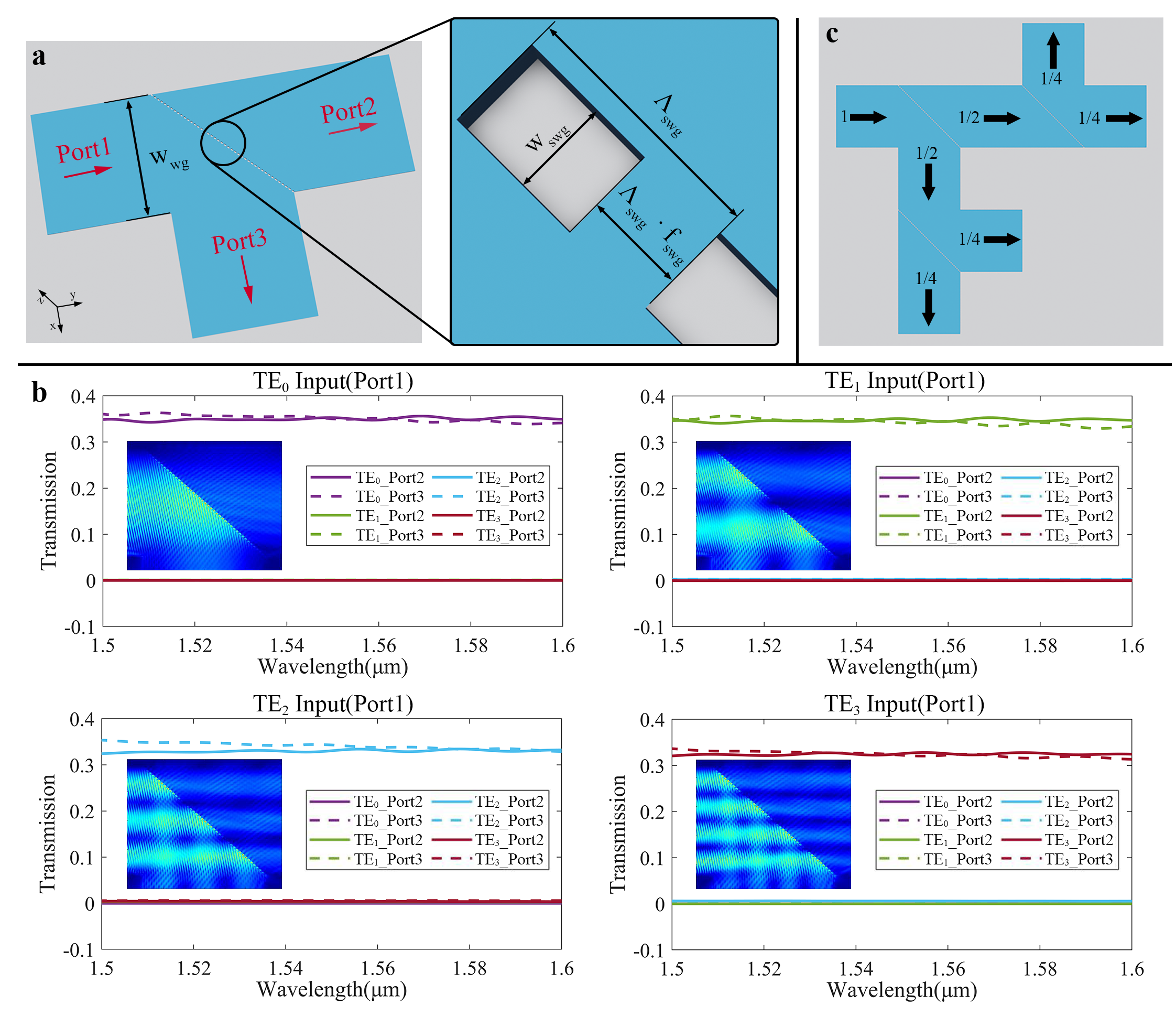

图3 | a, SWG结构示意图；b, 不同模式的传输光谱和光场分布图；c, 1 ×4分束器的结构图。

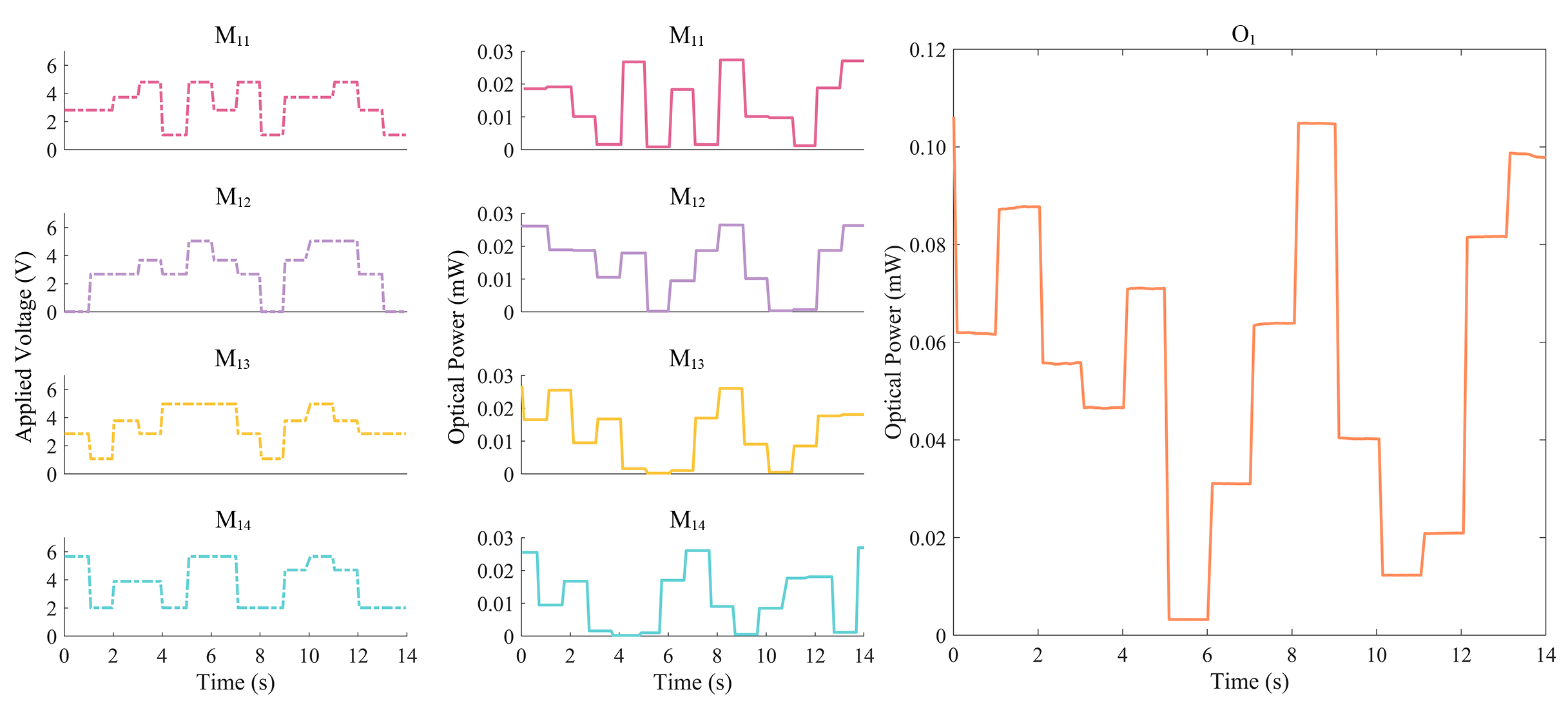

图4 | 驱动电压波形与调制器、乘法器的响应。

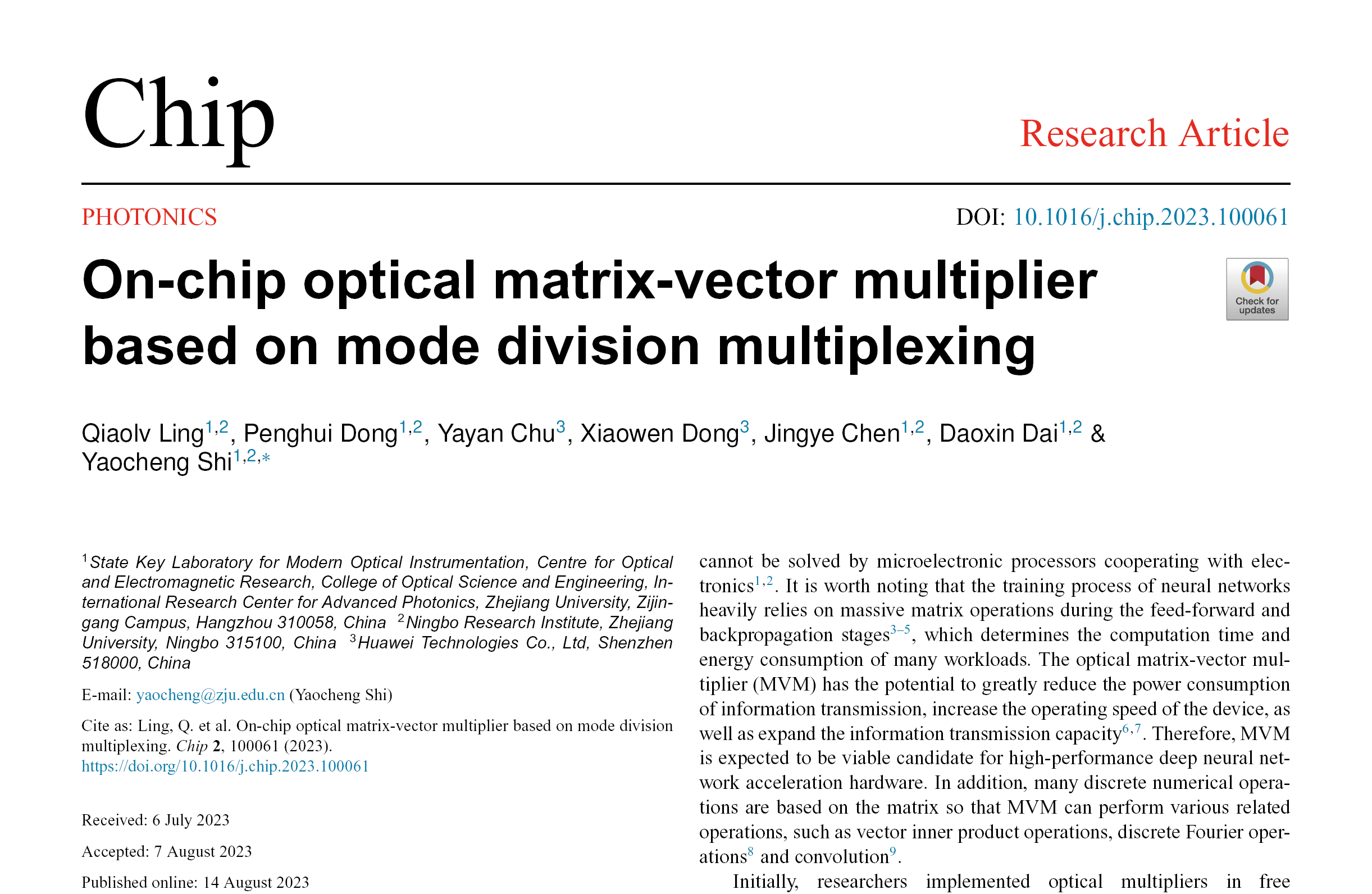

On-chip optical matrix-vector multiplier based on mode division multiplexing¹

With the rise of artificial intelligence, people's expectations for computing performance, including matrix operations, continue to grow. Traditional processors are limited by energy consumption and bandwidth, gradually becoming unable to meet the demands of extensive data processing. Optical matrix-vector multipliers have the potential to significantly reduce information transmission energy consumption, enhance device operating speed, and expand information transmission capacity, making them candidates for high-performance deep neural network acceleration hardware².

Based on principles, currently reported on-chip multipliers can be categorized into three types³: wavelength division multiplexing, Mach-Zehnder interferometer, and multiplane light conversion. The former often requires multiple lasers to support multiple wavelengths, while the latter two necessitate matrix loading with the help of algorithms.

The team led by Yaocheng Shi proposed and implemented an on-chip matrix-vector multiplier based on mode division multiplexing. This multiplier includes a mode multiplexer, multimode power splitter, mode demultiplexer, modulator array, and combiner. The mode (de) multiplexer is based on the asymmetric directional coupler (ADC)⁴, and the multimode power splitter uses the structure of multimode waveguide crossing with an obliquely embedded subwavelength grating (SWG)⁵. The research realized a 4x4-scale demonstrator on a silicon-on-insulator platform, demonstrating the device's dynamic response with 2-bit modulation precision using off-chip light source and photodetectors. The principle and experiments show that this device does not require complex light sources, supports one-one matrix loading, and can be scaled further with wavelength combinations in the future.
